Structural steel and lintels span openings and carry load above doors, windows and wide bays. Universal beams (UB), universal columns (UC), parallel flange channels (PFC), square hollow section (SHS) and equal angle are supplied in mild steel, while lintels and catnic-style sections support masonry over openings.
A universal beam (UB) is designed to carry load primarily in bending across a span, so it is deeper than it is wide. A universal column (UC) is squarer in proportion and used where compression or column loading dominates.
Universal columns and square hollow sections are common for vertical posts, while universal beams and parallel flange channels carry the horizontal spans. Equal angle is used for bracing and secondary framing.
Yes. Beams are supplied cut to the specified length for the opening, ready for the builder to crane into position. Galvanised or primed finishes are available where corrosion protection is required.
STL-007 · per ea
Choose 140x100 (6x4) Concrete Lintels for prestressed concrete lintels over door and window openings. Available in standard load-bearing lengths. Use for masonry cavity walls, single-leaf walls and garage openings. Send your lintel schedule for pricing and delivery.
STL-001 · per ea
Choose Crank Steel Beams for structural mild steel beams, columns and frames. Available in lengths from 3 m to 12 m with cutting service. Use for lintels, beams, columns and structural steelwork. Send your cutting list for steel pricing and delivery.
Use our free calculators to work out how much you need before requesting a trade quote.
STL-006 · per ea
Choose Equal Angle Mild Steel Beams for structural mild steel beams, columns and frames. Available in lengths from 3 m to 12 m with cutting service. Use for lintels, beams, columns and structural steelwork. Send your cutting list for steel pricing and delivery.
STL-076 · per ea
Flat Bar is a hot-rolled mild-steel rectangular bar for fabrication, base plates, gusset plates, brackets, gate frames and general workshop use. Standard UK sizes from 100x20mm up to 400x20mm. Select a size below for kg/m mass and trade pricing.
STL-077 · per ea

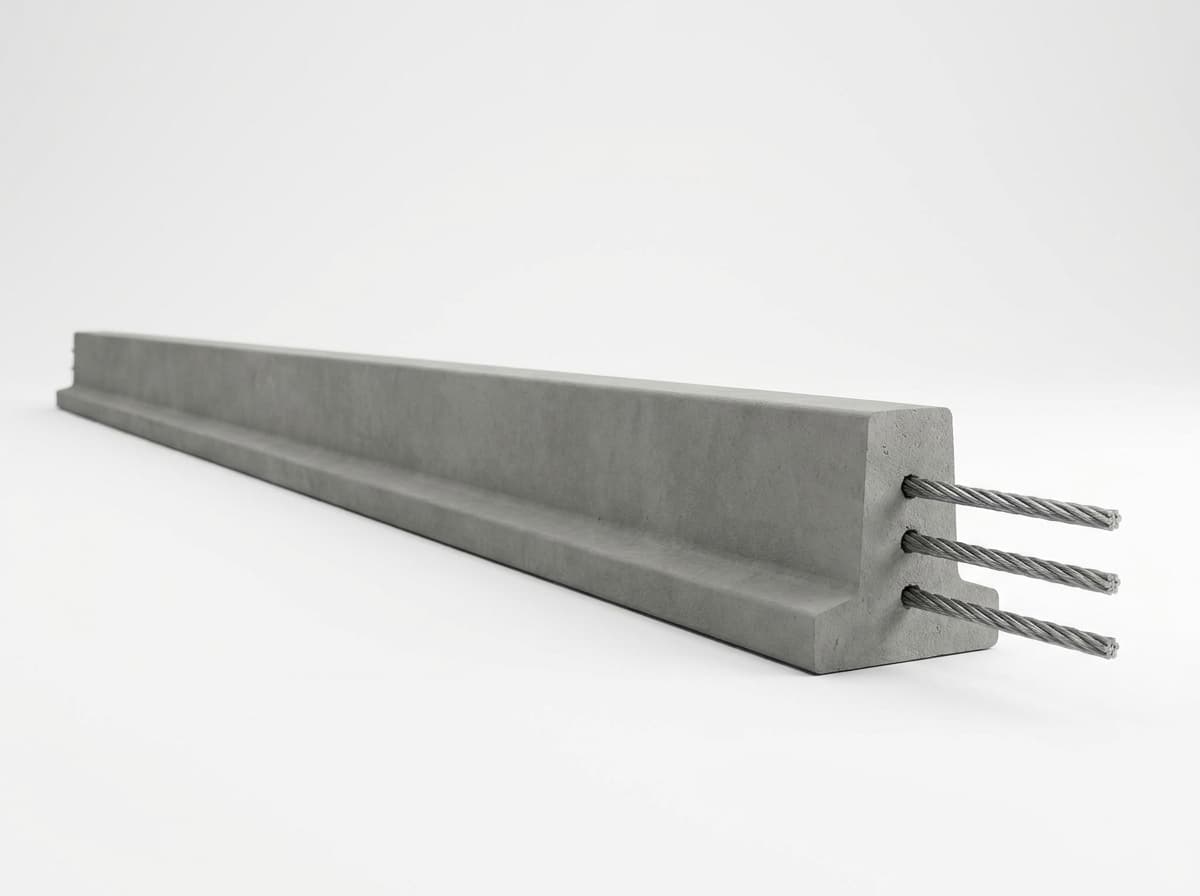

Floor Beam 4.2m is a pre-stressed concrete floor beam for ground and upper floors. Standard 4.2 metre length, 150mm deep, designed to work with concrete block infill. Trade price per beam — quantity discount available for full floor kits.
STL-010 · per ea
Choose Hi-Therm Cavity Lintels for thermally broken lintels in 100 mm and 150 mm cavity openings. Reduces cold bridging and suits energy-efficient masonry construction. Use for door and window openings in new-build and extension wall construction. Send your lintel schedule for pricing and delivery.
STL-005 · per ea
Choose Parallel Flange Channel Mild Steel Beams for structural mild steel beams, columns and frames. Available in lengths from 3 m to 12 m with cutting service. Use for lintels, beams, columns and structural steelwork. Send your cutting list for steel pricing and delivery.
STL-011 · per ea
Choose Single Leaf Lintel 100mm for galvanised steel lintels in 100 mm masonry openings. Available in standard lengths to suit block and brick cavities. Use for door and window openings in cavity wall and extension construction. Request a quote with your lintel schedule and delivery requirements.
STL-008 · per ea
Choose Special Stainless Steel Lintels for lintels and structural sections in exposed or coastal applications. Available in standard lengths and cut-to-size options for 100 mm and 150 mm cavities. Use for door and window openings, supports and frames where corrosion resistance matters. Add to your quote for pricing and delivery.
STL-075 · per ea
Square Hollow Section (SHS) is a hot-finished structural steel tube for columns, posts, frames, balustrades and general fabrication. Standard UK BS EN 10210 sections in S275JR/S355JR mild steel, 100mm x 100mm outer with four wall thickness options. Select a thickness below for kg/m mass and trade pricing.
STL-004 · per ea
Choose Square Hollow Section Steel Beams for structural mild steel beams, columns and frames. Available in lengths from 3 m to 12 m with cutting service. Use for lintels, beams, columns and structural steelwork. Send your cutting list for steel pricing and delivery.
STL-009 · per ea
Choose Stainless Steel Lintels for lintels and structural sections in exposed or coastal applications. Available in standard lengths and cut-to-size options for 100 mm and 150 mm cavities. Use for door and window openings, supports and frames where corrosion resistance matters. Add to your quote for pricing and delivery.
STL-013 · per ea
Choose Standard 100mm Cavity Steel Lintels for galvanised steel lintels in 100 mm masonry openings. Available in standard lengths to suit block and brick cavities. Use for door and window openings in cavity wall and extension construction. Request a quote with your lintel schedule and delivery requirements.
STL-012 · per ea
Choose Standard 150mm Steel Cavity Lintels for galvanised steel lintels in 150 mm masonry openings. Available in standard lengths to suit block and brick cavities. Use for door and window openings in cavity wall and extension construction. Request a quote with your lintel schedule and delivery requirements.
STL-073 · per ea
Universal Beam (UB) is a hot-rolled structural steel I-section for load-bearing beams, lintels, floor joists and roof beams. Standard UK BS4 sections in S275JR mild steel, available cut to length or in standard mill lengths. Select a section size below for kg/m mass, overall dimensions and trade pricing.
STL-074 · per ea
Universal Column (UC) is a hot-rolled structural steel H-section for columns, posts, stanchions and portal frames. Standard UK BS4 sections in S275JR mild steel, available cut to length or in standard mill lengths. Select a section size below for kg/m mass, overall dimensions and trade pricing.
STL-002 · per ea
Choose Universal Column Structural Section Mild Steel Beams for structural mild steel beams, columns and frames. Available in lengths from 3 m to 12 m with cutting service. Use for lintels, beams, columns and structural steelwork. Send your cutting list for steel pricing and delivery.
STL-003 · per ea
Choose Universal Steel Beam for structural mild steel beams, columns and frames. Available in lengths from 3 m to 12 m with cutting service. Use for lintels, beams, columns and structural steelwork. Send your cutting list for steel pricing and delivery.
